Traffic Signal Controller Version 1.0

Traffic Signal Controller is a software package that is capable of imitating an eight phase controller cabinet and operating a virtual intersection.

The real world interface currently supports a two phase intersection via your PCs COM port. two phase operation requires one relay box (approximately $60).

A rewrite of the program would be necessary for more than two phases of operation.  Four phase requires two relay boxes and a joiner kit (approximately $130 total).  Eight phases requires TWO COM Ports, FOUR relay boxes and TWO joiner kits (approximately $260)  This rewrite will be in a future version.

Download It Now! (1.25 MB)

The relay box I use is a CK1610, available from Electronics Now.

If you get an error about "MSCOMM32.OCX", a "light edition" is available.  The only difference is that the light edition (Called TSCLite - 1.23MB) does not control the Serial Port, which is necessary if you are using the CK1610 to operate an actual signal.  Temporarily unavailable

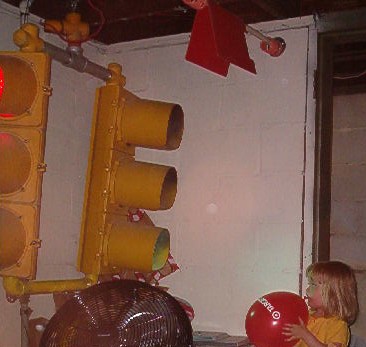

The author's daughter (age 3) watches the operation of the first signal controlled by TSC
